What Are Attribute Gauges? A Complete Guide by India’s Trusted Gauges Manufacturer in Pune
In precision manufacturing, the difference between an acceptable component and a rejected one often comes down to fractions of a millimetre. That is where attribute gauges step in — and if your quality control process isn’t built around the right gauging tools, you are already losing money on scrap, rework, and failed inspections.
Attribute gauges are fixed-limit inspection tools used to determine whether a component is within a specified tolerance — simply put, they give you a Go or No-Go answer. Unlike variable gauges that measure exact dimensions, attribute gauges are designed for speed, repeatability, and shop-floor reliability. They do not tell you how much a dimension is off — they tell you whether it passes or fails. This makes them the go-to choice for high-volume production environments across the automotive, aerospace, defence, and general engineering industries.
At Madhur Enterpises, one of the leading gauges manufacturers in Pune, we manufacture a comprehensive range of attribute gauges — from plain plug gauges and ring gauges to thread plug gauge and thread ring gauge sets — all produced from premium raw material with strict adherence to IS, DIN, and ANSI standards. Every gauge we supply comes with a calibration service certificate, ensuring your quality system is always audit-ready. Whether you need a single gauge plug set or bulk plug gauges for a production line, we have you covered as a trusted Indian manufacturer delivering precision at scale.
Let’s walk through the complete range of attribute gauges and what makes each one indispensable.

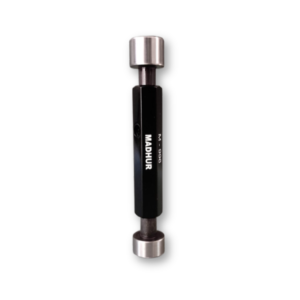

Plain Plug Gauge
A plain plug gauge is one of the most widely used attribute gauges in the industry. It is used to check the internal diameter (bore) of a machined hole to verify whether it falls within the specified tolerance limits. The gauge has two ends — the Go end, which must pass through the hole freely, and the No-Go end, which must not enter the hole. This simple go-nogo principle enables fast, consistent inspection on the shop floor without the need for skilled interpretation. As a trusted gauges manufacturer Pune, we manufacture plain plug gauges from high-grade steel with hard chrome finish for extended tool life.
Long Length Plain Plug Gauge
Designed for checking deep bores or long holes where a standard plug gauge cannot reach. The extended handle and gauge body allow full insertion into deep cavities while maintaining accurate diameter inspection.
Only Go Plain Plug Gauge
Used specifically when only the minimum material condition needs to be verified. This single-ended gauge checks that the bore is large enough to accept the mating part, without assessing the upper limit.
Only No-Go Plain Plug Gauge
Used when only the maximum material condition needs checking. This gauge confirms that the bore has not been machined oversize, ensuring the hole does not exceed its upper tolerance limit.
Depth Plug Gauge
A specialised plug gauge designed to check both the diameter and depth of a blind hole simultaneously. Ideal for components where bore depth is a critical functional requirement.

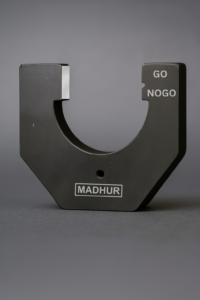

Snap Gauge
A snap gauge, also known as a gap gauge, is used to inspect the external dimensions of a component — such as the outer diameter of a shaft, the thickness of a plate, or the width of a feature. It works on the same go-nogo principle: the component must pass through the Go anvil but must not pass through the No-Go anvil. Snap gauges are ideal for high-speed production lines because they allow rapid, one-handed inspection without the need for precise alignment. As a dedicated Indian manufacturer, we offer snap gauges in multiple configurations to suit every application.
Single Ended Snap Gauge
Features one pair of anvils — either Go or No-Go — used when only one limit needs to be verified during production. Lightweight and easy to handle on the shop floor.
Double Ended Snap Gauge
Has Go on one end and No-Go on the other, allowing complete tolerance inspection in a single tool. Reduces gauge changeover time and improves inspection efficiency.
H-Type Snap Gauge
Built with a rigid H-frame body for improved durability and stability during inspection. Preferred for components with tighter tolerances where frame rigidity directly impacts measurement reliability.
Long Length Snap Gauge
Designed for components with larger diameters or extended features that standard snap gauges cannot accommodate. Maintains consistent anvil geometry across the extended span.
Groove Type Snap Gauge
Specially designed to check the width of grooves, slots, or undercuts on turned components. The profiled anvils reach into the groove to verify that the feature width is within tolerance.

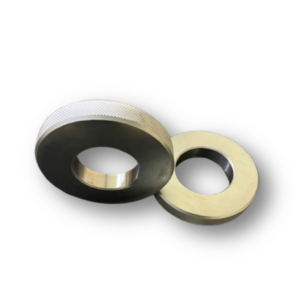

Plain Ring Gauge
A plain ring gauge is used to inspect the external diameter of shafts, pins, and cylindrical components. It is the counterpart to the plain plug gauge — where the plug gauge checks a hole, the ring gauge checks a shaft. The bore of the ring gauge is precision-ground to the required tolerance and is used to confirm whether the shaft is within size. Plain ring gauges are a staple of any gauge plug set in production environments and are manufactured by us using high-quality raw material with hardened and stabilised steel for long service life.
Go Type Plain Ring Gauge
The Go ring gauge is ground to the maximum material limit of the shaft. It must slide freely over the shaft to confirm the shaft is not oversize. Used to verify the upper tolerance boundary of external diameters.
No-Go Type Plain Ring Gauge
Ground to the minimum material limit of the shaft. It must not slide over the shaft — if it does, the shaft is undersize and must be rejected. Together with the Go gauge, it forms a complete thread go-nogo set equivalent for plain diameters.
Width Gauge
A width gauge is used to inspect the width of slots, keyways, grooves, and other linear features on machined components. It ensures that the feature width is within the specified tolerance — neither too narrow to accept a mating key or part, nor too wide to maintain a proper fit. Width gauges are compact, easy to use, and essential in industries where keyway fits and slot tolerances are critical to assembly performance. As a gauges manufacturer Pune, we supply width gauges calibrated to customer-specified tolerances with full calibration service documentation.

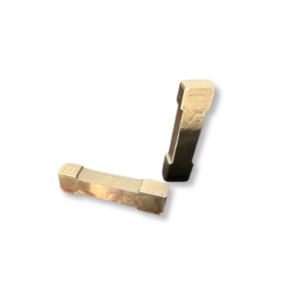

Slip Type Width Gauge
A set of precision-ground gauge blades of specific widths used to check slot and groove dimensions by trial fit. The blades are interchangeable and allow checking of multiple width sizes within a range.
Standard Width Gauge
A fixed-size gauge designed for a single nominal width with defined Go and No-Go limits. Used for dedicated production inspection where a single slot or keyway size is repeatedly inspected at high volume.

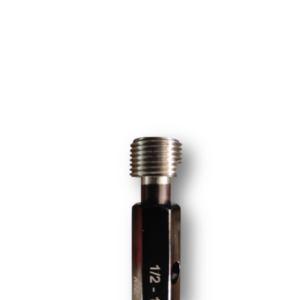

Thread Plug Gauge
A thread plug gauge is used to inspect internal threads — such as those in nuts, threaded holes, and tapped bores — to verify that they conform to the specified thread form, pitch, and tolerance class. It is one of the most critical gauges in any quality control setup, especially where threaded fasteners are involved. Our thread plug gauge range covers all major thread standards and is manufactured as a complete thread go-nogo set for full tolerance verification. Available in standard and long-length versions to suit blind and through holes alike.
Long Length Thread Plug Gauge
For inspecting deep threaded holes where standard-length gauges cannot fully engage the thread. Extended shank ensures proper thread engagement across the full depth of the hole.
Only Go Thread Plug Gauge
Verifies that the internal thread is large enough to accept a mating bolt or stud. Used in applications where only the minimum material condition of the thread needs routine verification.
Only No-Go Thread Plug Gauge
Checks that the thread has not been tapped oversize. Confirms the maximum material limit is not exceeded, preventing loose or non-functional thread fits.
Depth Thread Plug Gauge
Used to verify both the thread form and the effective thread depth in blind holes. Ensures that threads are cut to the required depth for full fastener engagement.
NPT Thread Plug Gauge
Designed for American National Pipe Taper (NPT) threads used in fluid and gas piping systems. Checks the taper, pitch, and form of internal pipe threads to NPT standards.
BSPT Thread Plug Gauge
For British Standard Pipe Taper (BSPT) threads, commonly used in hydraulic and pneumatic systems. Ensures compatibility with standard pipe fittings used across UK-specification and Indian industrial equipment.
BSF Thread Plug Gauge
For British Standard Fine (BSF) threads found in older machinery, automotive, and precision engineering applications. Ensures correct fit for fine-pitch British thread forms in legacy equipment.
Metric Thread Plug Gauge
For ISO metric threads — the most commonly used thread standard globally. Available across all standard pitch and diameter combinations for both coarse and fine metric threads.
Unified Thread Plug Gauge
For Unified National (UN, UNC, UNF) threads used in American-specification equipment and aerospace components. Ensures full conformance to ASME/ANSI B1.2 standards.

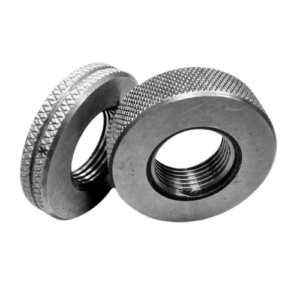

Thread Ring Gauge
A thread ring gauge is the external counterpart to the thread plug gauge. It is used to inspect external threads on bolts, studs, screws, and threaded shafts to verify that they conform to the specified thread standard. Like all attribute gauges, it works on the go-nogo principle — the Go ring must engage the thread fully and freely, while the No-Go ring must not engage beyond two turns. Our thread ring gauges are precision-ground and lapped to the tightest tolerances, making them a benchmark product in our plug gauges and thread gauge range. All thread ring gauges are supplied with a calibration service certificate.
Go + No-Go Thread Ring Gauge
A matched pair of thread ring gauges that together verify both limits of an external thread tolerance. The Go ring confirms minimum material condition; the No-Go ring confirms maximum material condition. The complete thread go-nogo set for external thread inspection.
NPT Thread Ring Gauge
For inspecting external NPT taper pipe threads. Verifies thread taper, form, and pitch on nipples, fittings, and threaded pipe ends to American pipe thread standards.
BSPT Thread Ring Gauge
For external BSPT pipe threads used in hydraulic, pneumatic, and plumbing systems. Ensures full conformance to British pipe taper thread standards for leak-free assembly.
BSF Thread Ring Gauge
For external British Standard Fine threads. Used in precision engineering, vintage automotive, and defence applications where BSF thread forms are specified.
Metric Thread Ring Gauge
For ISO metric external threads — the industry standard across European and Indian manufacturing. Available in all standard diameters and pitch combinations.
Unified Thread Ring Gauge
For external Unified National threads (UNC, UNF) on bolts and fasteners used in American and aerospace-specification assemblies. Conforms to ASME/ANSI B1.3 requirements.
Why Choose Madhur Enterprises — Gauges Manufacturer Pune?
When you invest in attribute gauges, you are investing in the integrity of your entire quality system. Choosing the right gauges manufacturer is not just about price — it’s about traceability, consistency, and service. At Madhur Enterprises, we back every gauge we manufacture with:
- Premium raw material sourced for hardness, stability, and dimensional accuracy
- Calibration service with traceable certificates to national standards
- A full product range covering plug gauges, ring gauge, thread plug gauge, thread ring gauge, and gauge plug set options
- Custom gauges for special applications and non-standard tolerances
- Fast turnaround and reliable supply — because your production line cannot afford to wait
As a proudly Indian manufacturer based in Pune — one of India’s most important manufacturing hubs — we combine world-class gauging expertise with the responsiveness and cost-efficiency that local supply offers.
